High Efficiency and Automated Anaerobic Treatment System
![](img/industrialbiogasplant/highefficiency/industrialbiogas-highefficiency.jpg)

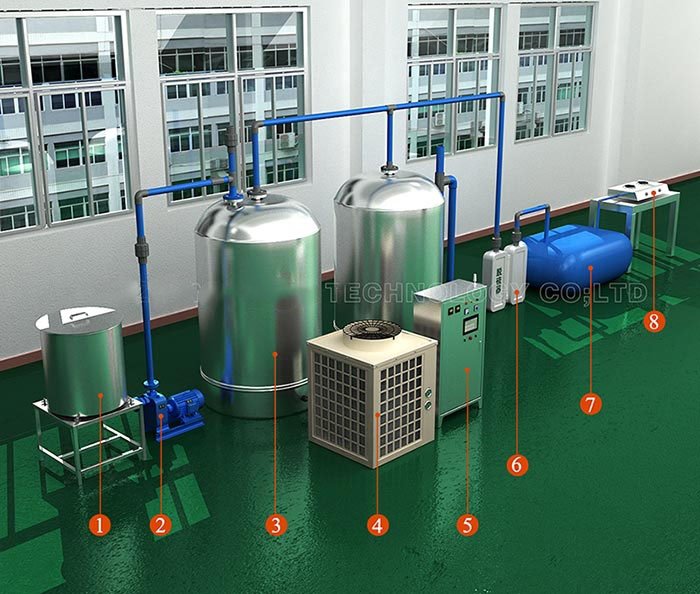

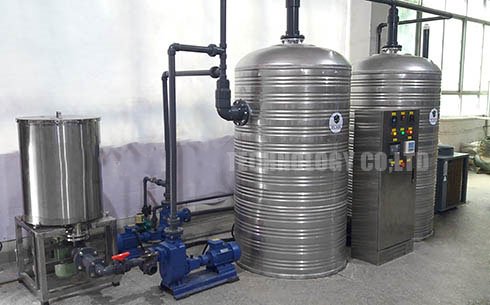

HIGH EFFICIENCY AND AUTOMATED ANAEROBIC TREATMENT SYSTEMIs designed mainly for restaurants to treat food wastes, and for anaerobic scientific researches. The product is mainly composed of a food waste disposer, a feeding pump, two anaerobic reactors, a heat pump and a console. The anaerobic reactor is constructed of double layer of stainless steel plates with a foam insulation layer installed between, and is heated by a heat pump system. It has a temperature controlling system, a PH controlling system and a mixing device installed.
- Food Waste Disposer
- Feeding Pump
- Anaerobic Reactor
- Heat Pump
- Console
- Biogas Purification Unit
- Biogas Storage Bag
- Biogas Stove
![](img/industrialbiogasplant/highefficiency/industrialbiogas-highefficiency-1.jpg)
![](img/industrialbiogasplant/highefficiency/industrialbiogas-highefficiency-2.jpg)
Technical Parameters
Total Volume of Digester | Diameter of Digester | Height of Digester | Power for Heat | Power of Food Waste Disposer |
---|---|---|---|---|
2.4m3 | 1500mm | 2000mm | 2.72kw | 2.2kw |
Max raw material of daily feeding |
||||
Food Waste | Cow Manure | Pig Manure | Chicken Manure | |
Max waste feeding (kg/d) | 75 | 186 | 134 | 80 |
Biogas Gas production (m3/d) | 6 | 6 | 6 | 6 |
