Septic tank biogas system

Description

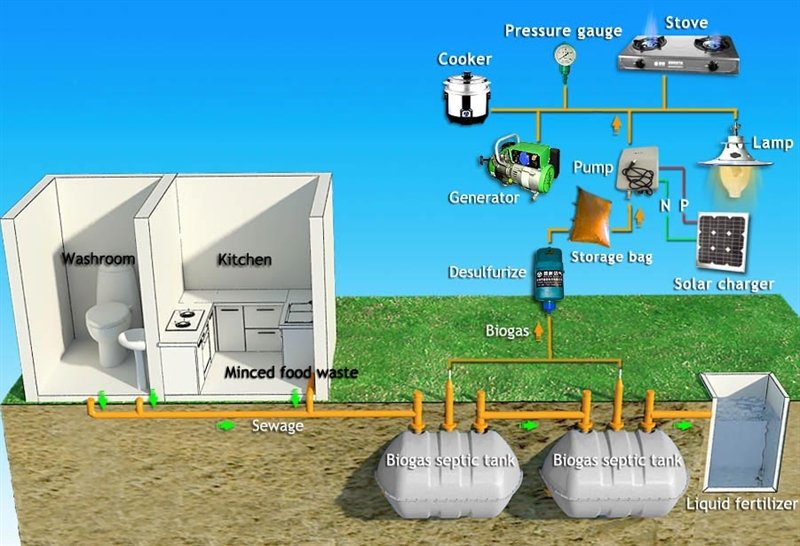

The system is used to process sewage water and food waste andis mainly composed of 12 biogas septic tanks, a liquid fertilizer storage pool, and the biogas utilization system. The biogas septic tank is 2m3 in volume and is made with fiber glass reinforced plastic. The biogas septic tank is composed of an upper part and a uner part that are connected byscrew bolts. The upper parts and under parts can be stacked up for shipment. The biogas utilization system is composed of a desulfurizer, a gas storage bag,a gas pump, a solar charger, a pressure gauge, gas pipeline and biogas appliances (stove, rice cooker, lamp and generator etc)

Advantages

No greenhouse gas escape and no smell (all the gases produced are collected and burned)
Can get clean liquid fertilizer that can be used for gardening.
Biogas is collected and used.
Easy and quick to install.

Biogas Septic Tank 2.0m3

Made with fiber glass reinforced plastic ,is composed of an upper part and a under part that are connected by screw bolts

Accessories


Biogas Stove Suitable gas: Biogas Heat load: 2.8KW Gas consumption rate: 0.45m3/h (for one burner) Heat efficiency : >57% Gas entrance pressure: 1600Pa Fire maker efficiency : >98% Gross weight: 5.46kgs Net weight: 4.71kgs Outside dimension: 730×410×130mm	Biogas fittings 30m Φ9mm PVC soft pipe 1pc pressure gauge 16KPa, 1pc desulfurizer 1KG , 5pcs valves，etc, 310×300×260mm/2sets, 10kg/2set HS CODE: 39174000	Biogas lamp with fire make The light is similar to a 60-100w incandescent lamp Gas consumption:0.07m3/h
Solar charger Output:12W For the Biogas pump (PX-25L)	Biogas pump Charging method：Only 220 AC Frequency 50Hz Power: 15 W Maximum pressure（kgf/c ㎡）＞0.22 Maximum Vacuum (-kpa) -22 Flow≥36 L/min Load flow≥12（100 meter）L/min	Biogas storage bag Material:PVC Volum:0.5m3 Size:1.5*1.2M Thickness 0.55mm, Weight: 2.7KG
