Container Anaerobic Treatment System III

Advantages

1. Easy and quick to install.
2. High efficient: the system has all the functions for fast anaerobic reaction such as 55゜C or 35゜C high and constant reacting temperature keeping, automatic pH adjustment and automatic mixing.
3. Environmental friendly:
• Odorless: All the gas produced is collected, cleaned and burned. The residue due to full fermentation has no smell.
• No greenhouse gas (biogas) discharge: all the biogas is collected, cleaned and burned as fuel.
• No waste discharge, the residue can be used for green or organic vegetable cultivation directly.

Structure

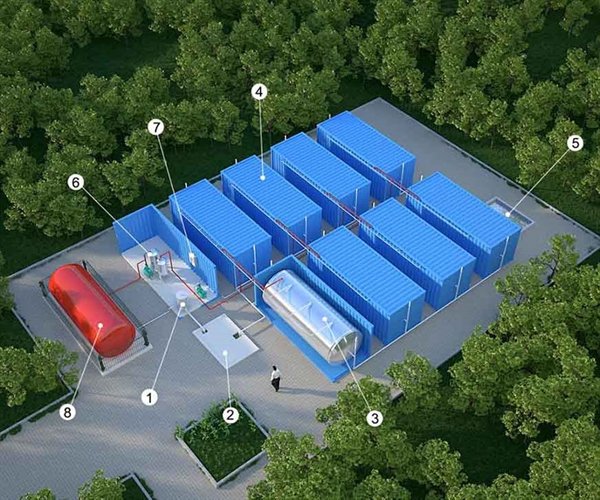

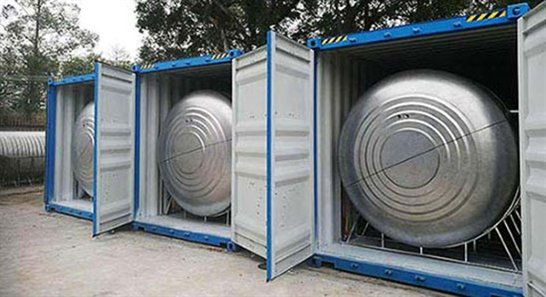

The system is composed mainly of several first stage anaerobic reactors, several second stage anaerobic reactors, a biogas desulphurization device, a biogas storage bag, and a console. The anaerobic reactor is constructed of double layer of stainless steel plates with 125px thick foam insulation layer installed between, and it has the an electric heater or a heat pump, a temperature controlling device，a gas or liquid stirring device installed. The volume of a single anaerobic reactor is 15m3.

Main performance index

1. The first and second stage anaerobic reactors can work at constant temperature set such as 55゜C or 35゜C
2. One 20ft container digester can treat maximum 450kg food waste per day and can produce about 35m3 biogas per day.
