Portable Assembly Biogas System 3.4m3

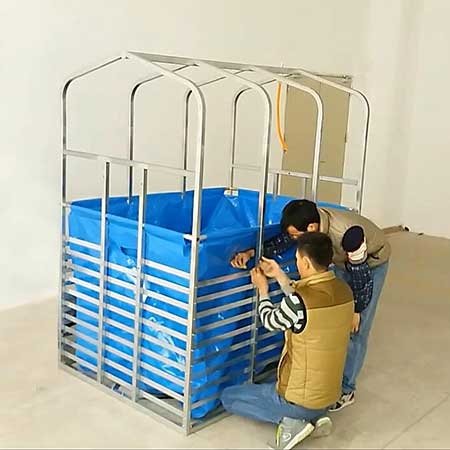

ADL Portable Assembly Biogas System is a DIY Kit BIOGAS SYSTEM for convenient transport (packed in carton box) and easy assembly by yourself. It is surface mounted, no need for digging or heavy construction.
It can be assembled within 90 minutes by the client without any training or guiding by video or manual book.
Max 2m3/d high biogas production with hollow sunlight sheet green house or heating by pad.
Very Safe
It sets up on the ground, avoid potential risk falling into pool for human & animal by accident than tranditional digester.
Biogas storage & production bag is made of macromolecular structure poly layer design, no leaking risk.
Easy To Use and Maintain
The whole design like a sun room, to make gas production efficiency at a peak level.
Easy operation, user can do operation by himself, generally no need to clean digester!
ADL Assembly Biogas System-3.4m3

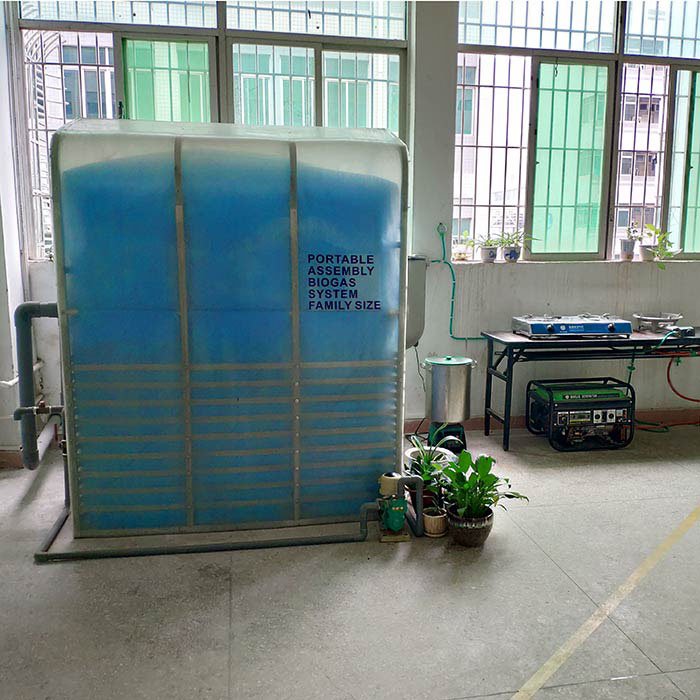

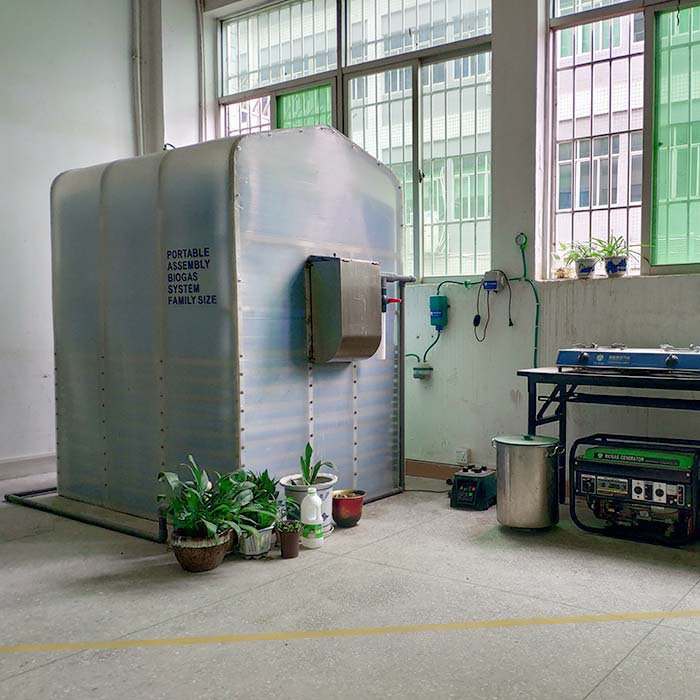

It is composed of a green house made with hollow sunlight sheet and metal supporting frame, a membrane digester with a gas storage bag combined in one, a stainless steel sink, a stainless steel outlet, a biogas filter and a biogas booster pump. The membrane of the digester has the characteristics of anti-aging, acid and alkali resistant and rodent resistance. When required, a feeding pump for sewage sludge disposal can be added; a circulating pump for raw material feeding and anaerobic digestate mixing can be added; a grinder for food waste shredding can be added. and an electric heater can be added for cold regions
![](img/domesticbiogasplant/abs-3.4m3/image-section2.jpeg)
![](img/domesticbiogasplant/abs-3.4m3/biogas-system-flow.jpg)

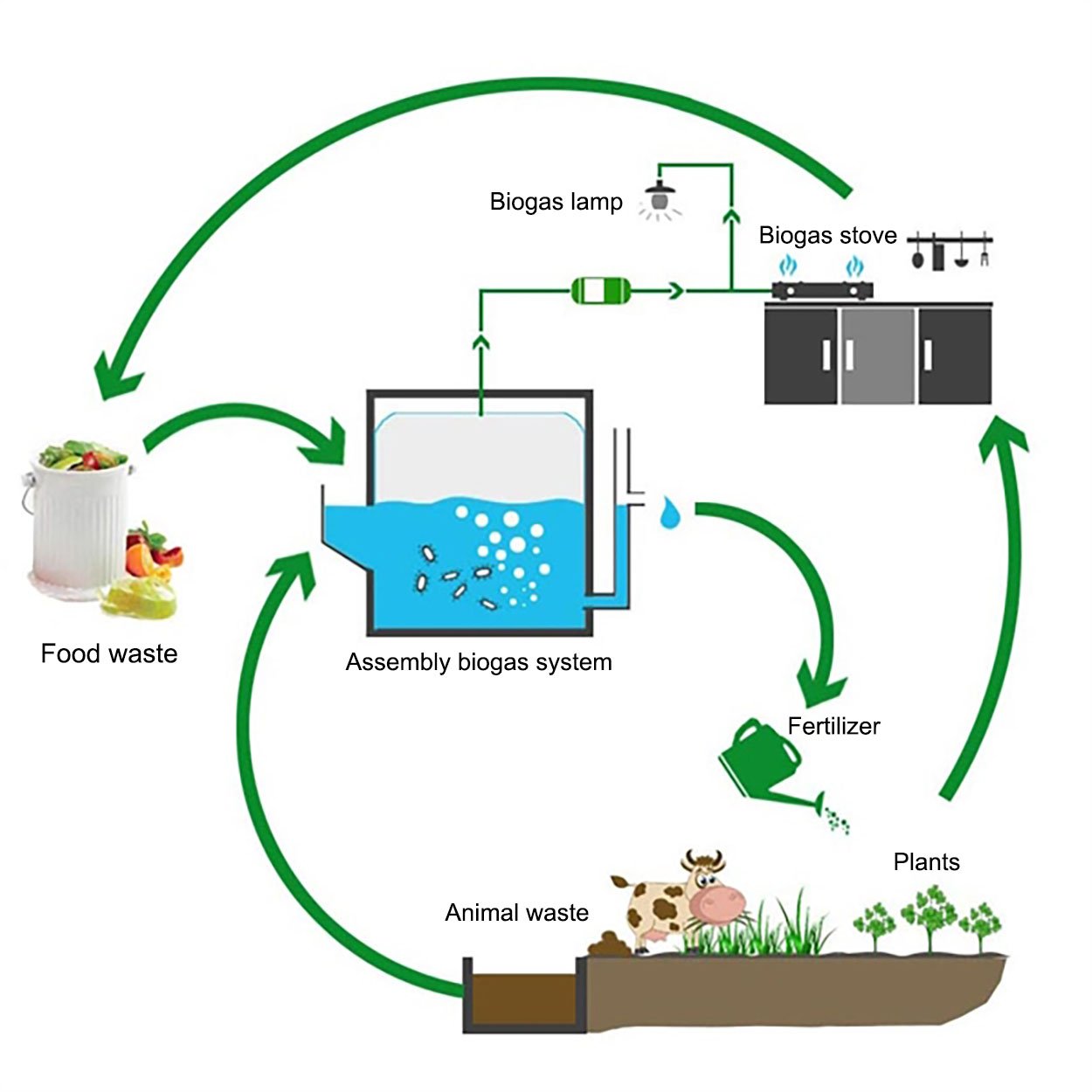

How it work?
Makes you treat your organic waste locally, Use the biogas for cooking and electricity, Feed your garden with nutritious liquid fertilizer, Save on your energy bill and garbage disposal fee!
The ultimate solution for families, restaurants , hotels and resorts to treat their organic wastes(food waste, sewage sludge and animal manure etc.)

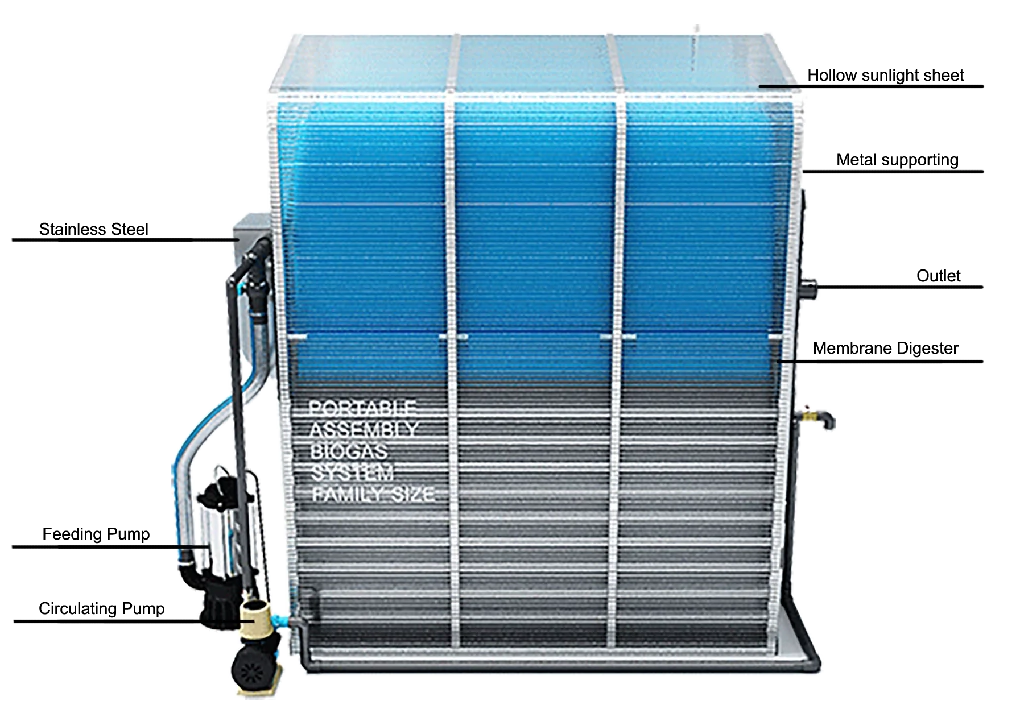

ADL Assembly Biogas System-3.4m3
It is composed of a green house made with hollow sunlight sheet and metal supporting frame, a membrane digester with a gas storage bag combined in one, a stainless steel sink, a stainless steel outlet, a biogas filter and a biogas booster pump. The membrane of the digester has the characteristics of anti-aging, acid and alkali resistant and rodent resistance. When required, a feeding pump for sewage sludge disposal can be added; a circulating pump for raw material feeding and anaerobic digestate mixing can be added; a grinder for food waste shredding can be added. and an electric heater can be added for cold regions
![](img/domesticbiogasplant/abs-3.4m3/portable-assembly-biogas-system-3.4m3-4.webp)
ADL Biogas Application

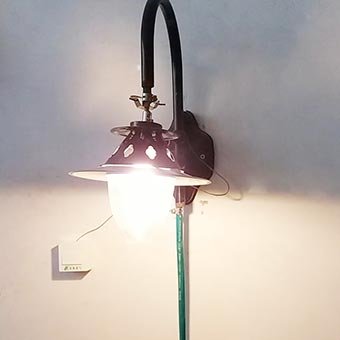

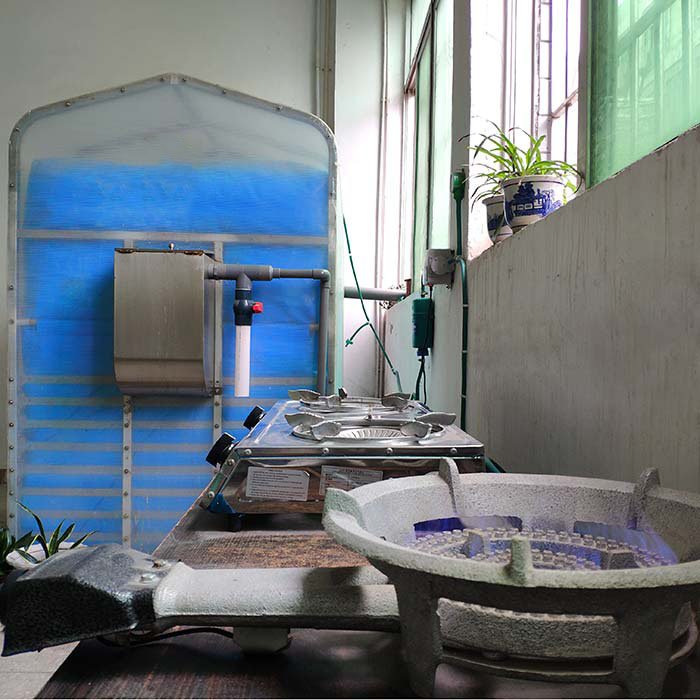

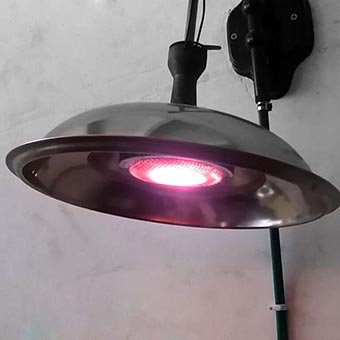

You can use the biogas for cooking and electricity
![](img/domesticbiogasplant/abs-3.4m3/application-biogas-stove.jpg)
![](img/domesticbiogasplant/abs-3.4m3/application-biogas-lamp.jpeg)
![](img/domesticbiogasplant/abs-3.4m3/application-biogas-room-heater.jpeg)
![](img/domesticbiogasplant/abs-3.4m3/application-generator.jpeg)
Disposable Wastes
Raw material | Maximum (Kg/d) |
---|---|
Food Waste | 25 |
Pig Manure | 45 |
Cow manure | 60 |
Chicken manure | 26 |
Human manure | 32 |
Vegetable | 65 |
Output: Biogas and Clean natural liquid fertilizer |
|
Minimum Ambient Temperature | 10°C |
Power of biogas booster pump | 15W |
Nominal Gas Pressure | 0.12bar |
Gas Flow | ≥26 L/min |
Size of filter (Desulfurizer) | 1L |
Weight (empty) | 150 kg |
Dimensions | 195H/156L/120W cm |
Space of green house | 3.4m3 |
Volume of digester | 1.7m3 |
Volume of gas storage | 1.3m3 |
Special size products can be manufactured when order in Batch.
